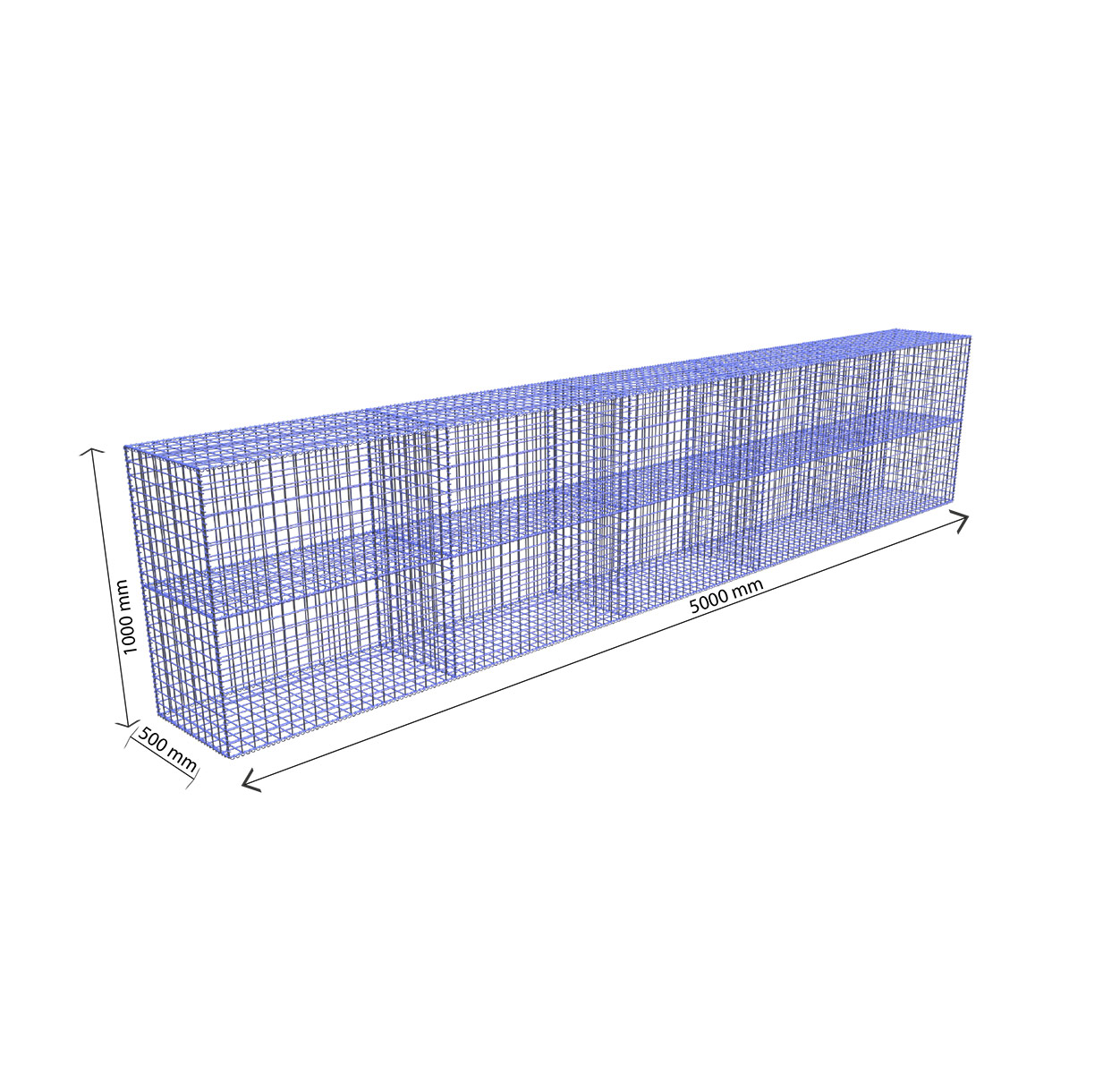

Gabion (Config A) 5000 x 1000 x 500

Length 5000mm
Height 1000mm
Depth 500mm
Select Length
Qty
$850.00

Standard length sets


Price
10m length - 10000mm
$1,617.00
1m length - 1000mm
$180.00
2m length - 2000mm
$350.00
3m length - 3000mm
$520.00
4m length - 4000mm
$690.00
5m length - 5000mm
$850.00
7m length - 7000mm
$1,169.00
8m length - 8000mm
$1,318.00
6m length - 6000mm
$1,009.00
9m length - 9000mm
$1,468.00

Each set includes

Components
Quantity
Front Back & Horizontal Panels
35 x 1000x500mm wire mesh
End / Divider Panels
12 x 500x500mm wire mesh
Spiral Joiners
30 x 980mm length & 42 x 480mm length
Internal Supporting Braces
10 x 1020mm & 10 x 520mm length (1 of each type to be used at 1m intervals)
NOTE: Each gabion basket set is made up from individual components, the largest being of 1m length.  As a result the welded wire mesh panels act as dividers between 1m long modules, joining them together to achieve a desired set length.  We do not use any panel larger than 1m in length as it is too difficult to handle and transport.

How it arrives

Gabion Baskets

How to assemble Gabion Baskets

All baskets can be built without any special tools taking 5 - 7 minutes each.

3 : 41
How to assemble Gabion Baskets
3 : 41
Rock selection for Gabion Baskets

Rock selection for Gabion Baskets

We look at three types of rock - polished river rock, crushed granite, and Castlemaine lineal rock.
