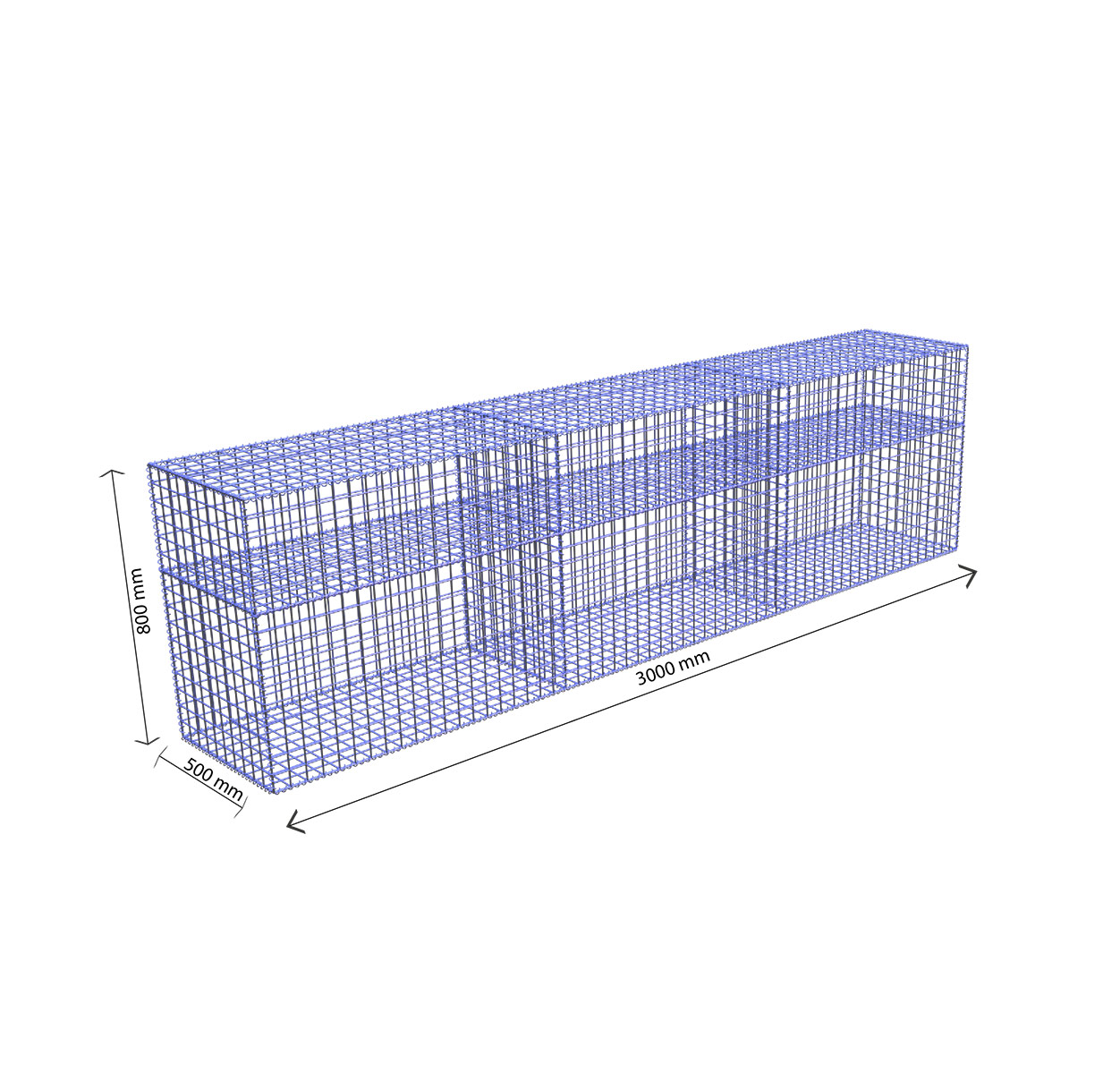

Gabion 3000 x 800 x 500

Length 3000mm
Height 800mm
Depth 500mm
Weight 80kg
Select Length

Standard length sets

1m length - 1000mm
2m length - 2000mm
3m length - 3000mm
4m length - 4000mm
5m length - 5000mm

Each set includes

Front and Back of Basket
12 wire mesh panels:  6 x 1000x500mm, 6 x 1000x300mm
Top and Bottom of Basket
6 x wire mesh panels 1000x500mm
Horizontal Dividering Panel
3 x wire mesh panels 1000x500mm
End / Vertical Dividing Panels
8 wire mesh panels: 4 x 500x500mm, 4 x 500x300mm
Spiral Joiners
18 x 980mm long, 20 x 480mm long, 8 x 280mm long
Internal Supporting Braces
6 x 520mm length
NOTE: Each gabion basket set is made up from individual components, the largest being of 1m length.  As a result the welded wire mesh panels act as dividers between 1m long modules, joining them together to achieve a desired set length.  We do not use any panel larger than 1m in length as it is too difficult to handle and transport.

How it arrives

Gabion Baskets

How to assemble Gabion Baskets

All baskets can be built without any special tools taking 5 - 7 minutes each.

3 : 41
How to assemble Gabion Baskets
3 : 41
Rock selection for Gabion Baskets

Rock selection for Gabion Baskets

We look at three types of rock - polished river rock, crushed granite, and Castlemaine lineal rock.
