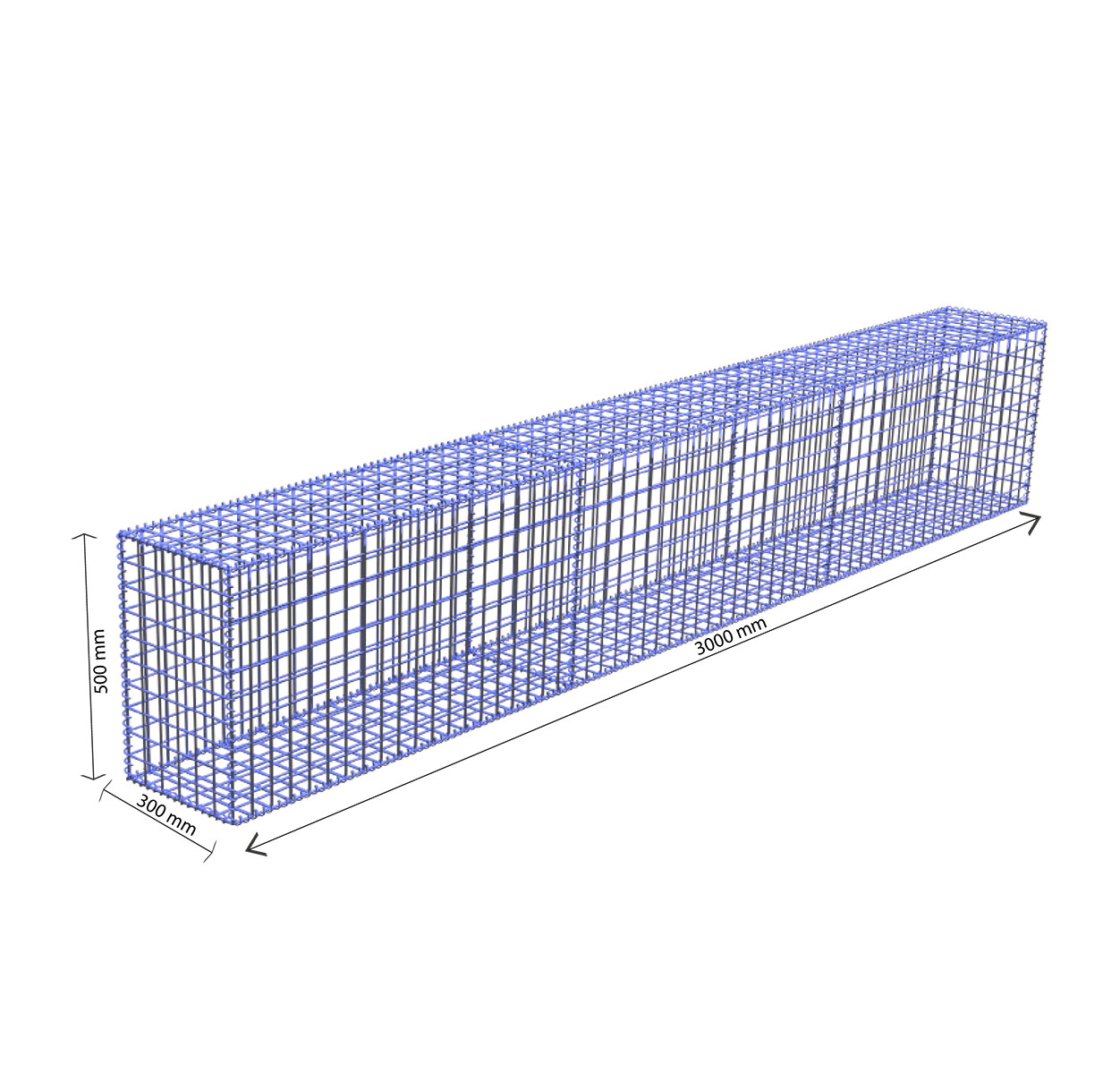

Gabion 3000 x 500 x 300

Length 3000mm
Height 500mm
Depth 300mm
Select Length
Qty
$221.00

Standard length sets


Price
1m length - 1000mm
$80.00
2m length - 2000mm
$155.00
3m length - 3000mm
$221.00
4m length - 4000mm
$288.00
5m length - 5000mm
$355.00
6m length - 6000mm
$422.00
7m length - 7000mm
$484.00
8m length - 8000mm
$546.00
9m length - 9000mm
$608.00
10m length - 10000mm
$664.00
0.5m length - 500mm
$50.00

Each set includes

Components
Quantity
Front & Back Panels of Basket
6 x wire mesh panels 1000x500mm
Top & Bottom Panels of Basket
6 x wire mesh panels 1000x300mm
End / Divider Panels
4 x wire mesh panels 500x300mm
Spiral Joiners
12 x 980mm length, 8 x 480mm length & 8 x 280mm length
Internal Supporting Braces
3 x 320mm length (used at 1m intervals)

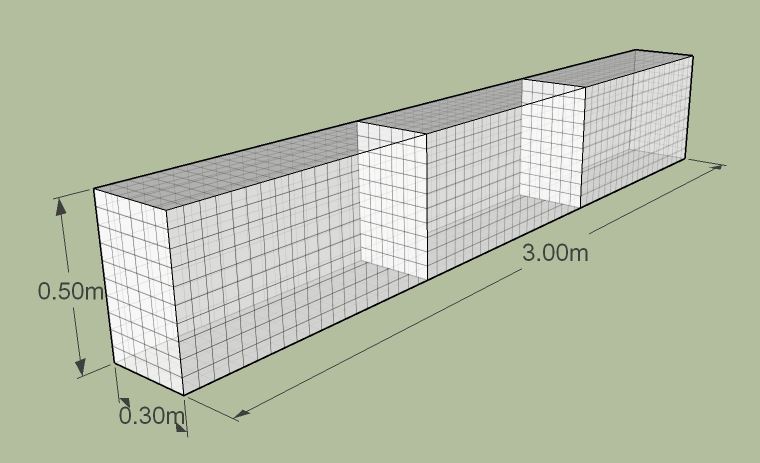

NOTE: Each gabion basket set is made up from individual components, the largest being of 1m length.  As a result the welded wire mesh panels act as dividers between 1m long modules, joining them together to achieve a desired set length.  We do not use any panel larger than 1m in length as it is too difficult to handle and transport.

How it arrives

Gabion 3000 x 500 x 300

How to assemble Gabion Baskets

All baskets can be built without any special tools taking 5 - 7 minutes each.

3 : 41
How to assemble Gabion Baskets
3 : 41
Rock selection for Gabion Baskets

Rock selection for Gabion Baskets

We look at three types of rock - polished river rock, crushed granite, and Castlemaine lineal rock.
